Vibration Analysis Wall Chart

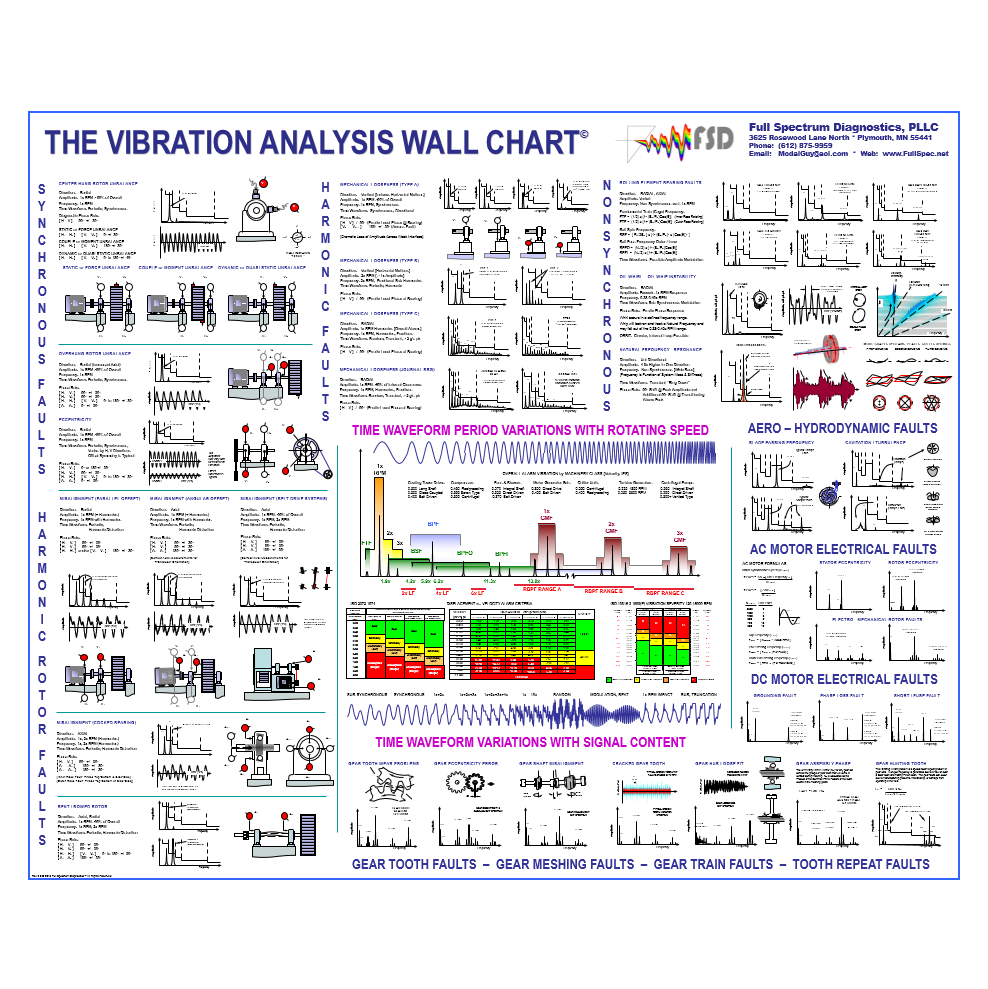

The Vibration Analysis Wall Chart is a 46” x 36” Full-Color Laminated Reference for your drab office wall.  The overall Alarm charts in the center of the chart are surrounded by groupings of over 40 dominant rotating machinery faults.  The fault groupings include frequency content and dominant directional response that effectively allow the analyst to “narrow-down” the potential sources and zero-in on current vibration problem.  When combined with the Vibration Fault Guide, the Vibration Analysis Wall Chart completes the diagnostic analysis loop.  Weather you require one chart or a need to wall-paper your office, we can help!
