Time Waveform Analysis Wall Chart

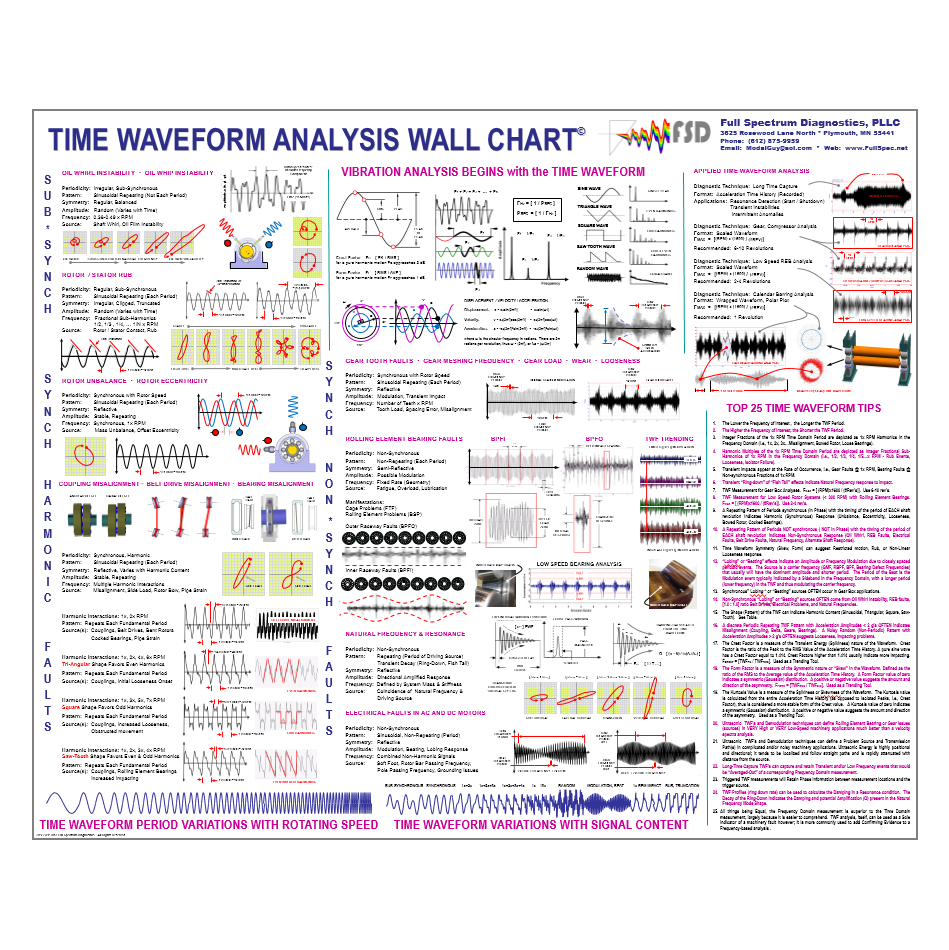

Full Spectrum Diagnostics announces a new addition to our family of charts and guides with the Time Waveform Analysis Wall Chart. This full-color laminated 33” x 42” chart includes the full gambit of waveform patterns, classic orbits, and diagnostic techniques to support any vibration analyst. A list of FSD’s top 25 Waveform Tips are included in short, easy to interpret blocks of useful information. This Chart provides a broad look at dominant vibration problems and is a useful tool, especially when complemented with the Vibration Fault Guide and Vibration Techniques Guide pocket book references.
